If you’ve been saving pergola photos for months and still can’t commit, the problem usually isn’t the style — it’s the roof. A beautiful pergola with the wrong covering becomes a project you’re redoing in three years. Polycarbonate roofing panels solve most of the common failures: they let light through, shed rain efficiently, block UV, and handle temperature swings that would crack standard acrylic or warp wood lattice. But the difference between a polycarbonate patio cover that performs for a decade and one that drips, sags, or goes cloudy in two seasons comes down to the details most idea galleries skip entirely. This guide covers 13 specific ideas — panel types, frame configurations, pitch angles, fastening systems, and finishing details — so you can build or commission a cover that works as well in January as it does in July.

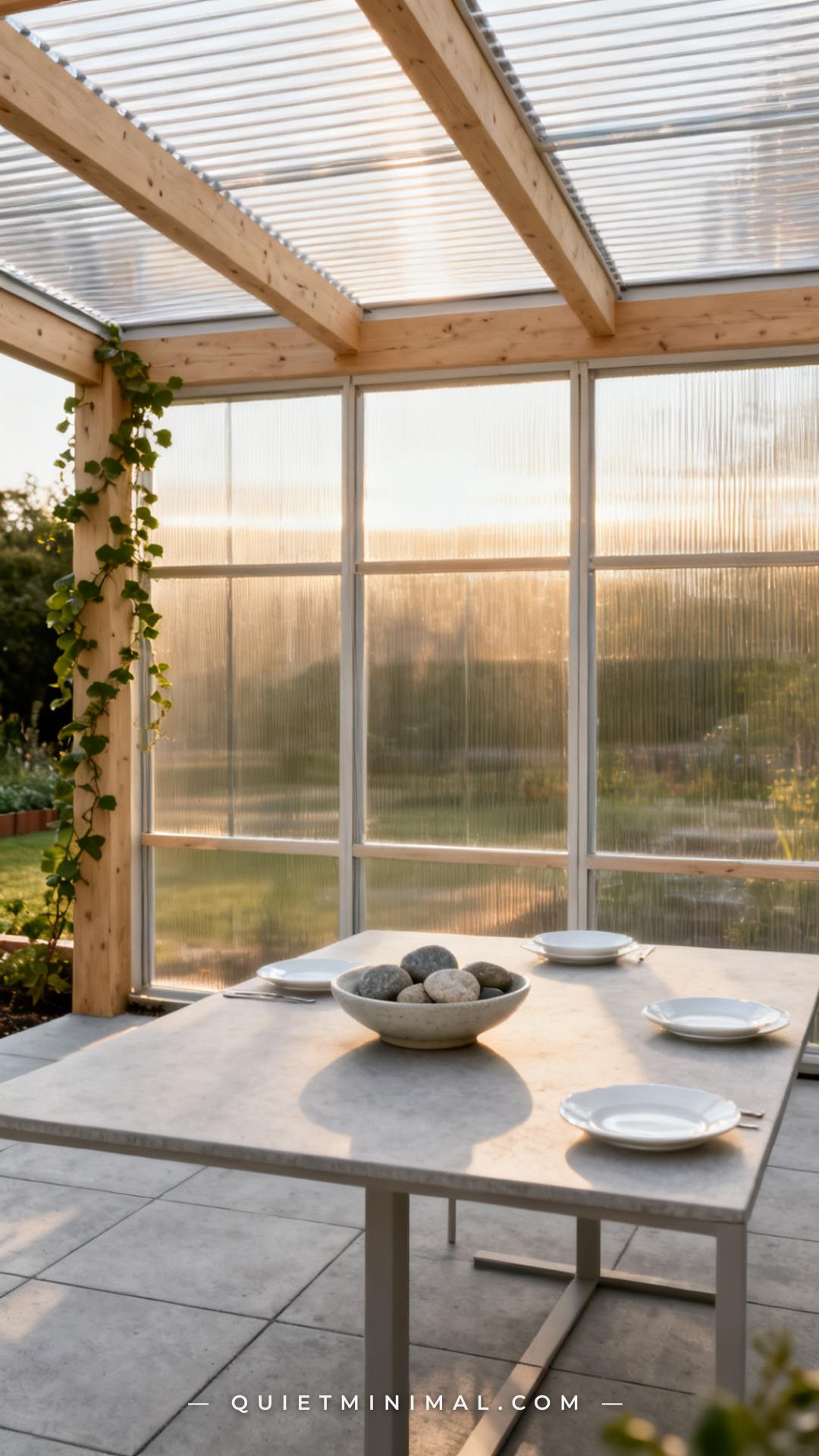

1. Twin-Wall Polycarbonate Panels for Maximum Light Diffusion
Twin-wall polycarbonate — the kind with internal channels running parallel to the panel length — is the most popular choice for a reason. The air gap between its two layers acts as a thermal buffer, reducing heat buildup under the cover during summer while providing minimal insulation against cold. Light passes through diffused rather than direct, which means no harsh solar patches on your patio furniture and a much more comfortable space at midday.
For most residential pergola applications, 8mm twin-wall is the practical baseline. It handles moderate wind and light snow loads, it’s light enough for a two-person installation, and the panel weight is compatible with standard aluminum or timber pergola framing. If you’re in a high-snowfall zone (more than 20 inches of seasonal snow), step up to 10mm or 16mm panels, which carry significantly higher load ratings.
Key Takeaway: Choose 8mm twin-wall panels as your default; only go thinner if you’re in a mild climate with no snow, and go thicker if your region sees heavy seasonal loads.

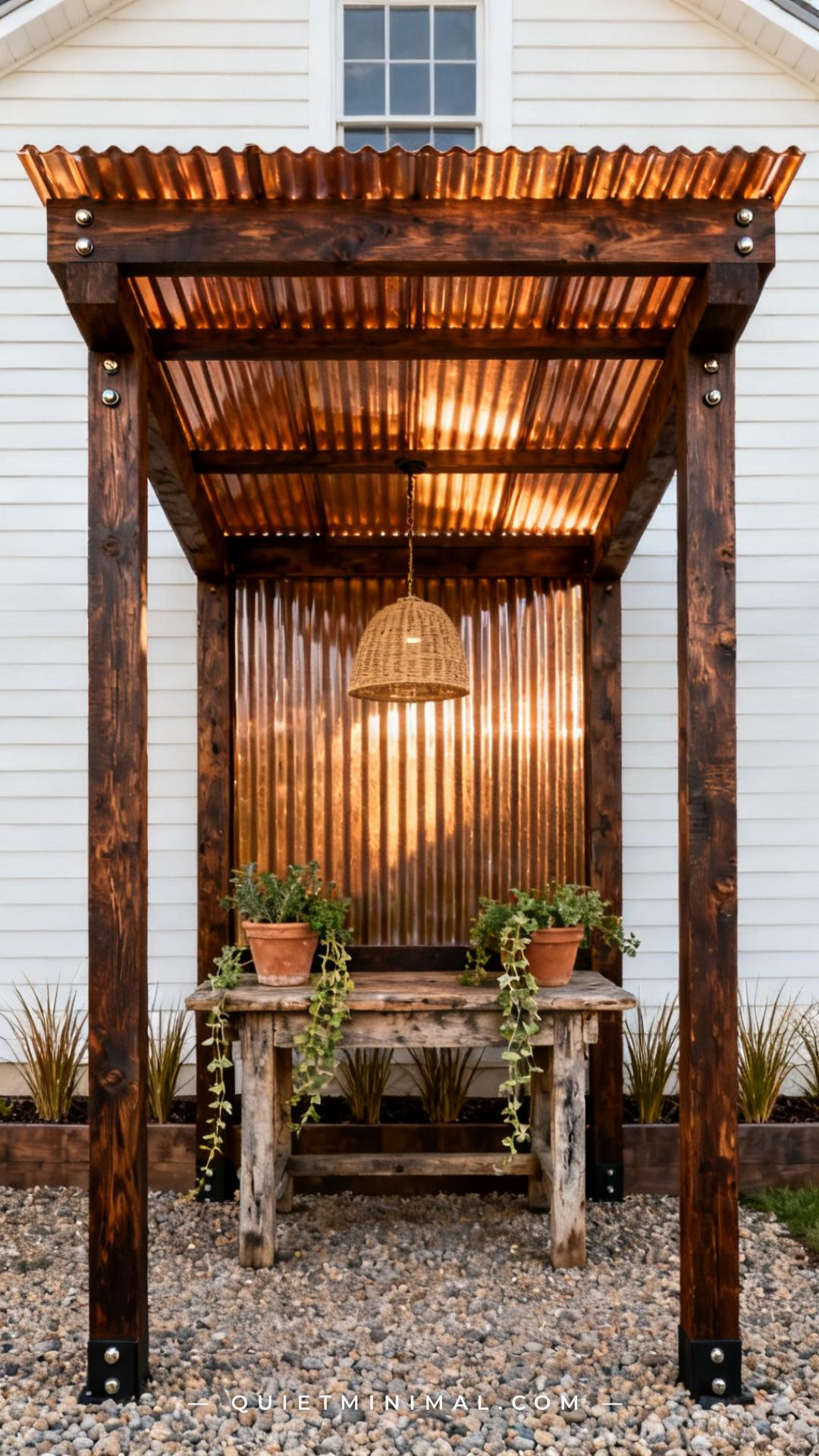

2. Corrugated Polycarbonate Panels for a Farmhouse or Industrial Pergola
Corrugated polycarbonate panels carry a slightly different aesthetic than flat-profile twin-wall. The ridged surface reads as industrial, barn-adjacent, or greenhouse-inspired — all of which work beautifully with farmhouse, rustic, or contemporary-industrial pergola frames. Brands like Suntuf and Tuftex make corrugated panels in clear, bronze, and diffused white, giving you aesthetic flexibility beyond the material itself.
From a structural standpoint, corrugated panels are inherently stiffer than flat panels of the same thickness because the ridge-and-valley profile adds mechanical rigidity. This means you can often span slightly wider rafter bays with corrugated panels without deflection, which matters when you’re working with an existing pergola frame that wasn’t designed for a solid roof.
Key Takeaway: Corrugated polycarbonate is the right call when you want a more textured, rustic, or industrial roof profile and need a panel that spans wider rafter gaps without sagging.
3. Bronze-Tint Panels for Heat Reduction Without Losing the View
Clear polycarbonate maximizes light but does little to reduce heat gain. In climates where summer temperatures push past 90°F regularly, a clear roof can turn your patio into a greenhouse. Bronze-tinted panels filter approximately 20–30% of solar radiation compared to clear panels while still letting in comfortable, warm-toned diffused light — enough to read comfortably on a sunny afternoon without squinting.
The trade-off is the light quality change: bronze panels cast a warmer, more amber hue, which is flattering for outdoor dining and lounging but worth previewing before committing. Palram’s Multiwall bronze and Suntuf’s bronze corrugated are both widely available through Home Depot and Amazon, verified in stock as of 2026. Pair bronze panels with natural wood, rattan, or terracotta elements for a cohesive warm palette.
Key Takeaway: Bronze-tint panels are the smartest call for south-facing or west-facing patios where afternoon sun would otherwise create an unbearable heat pocket under a clear roof.

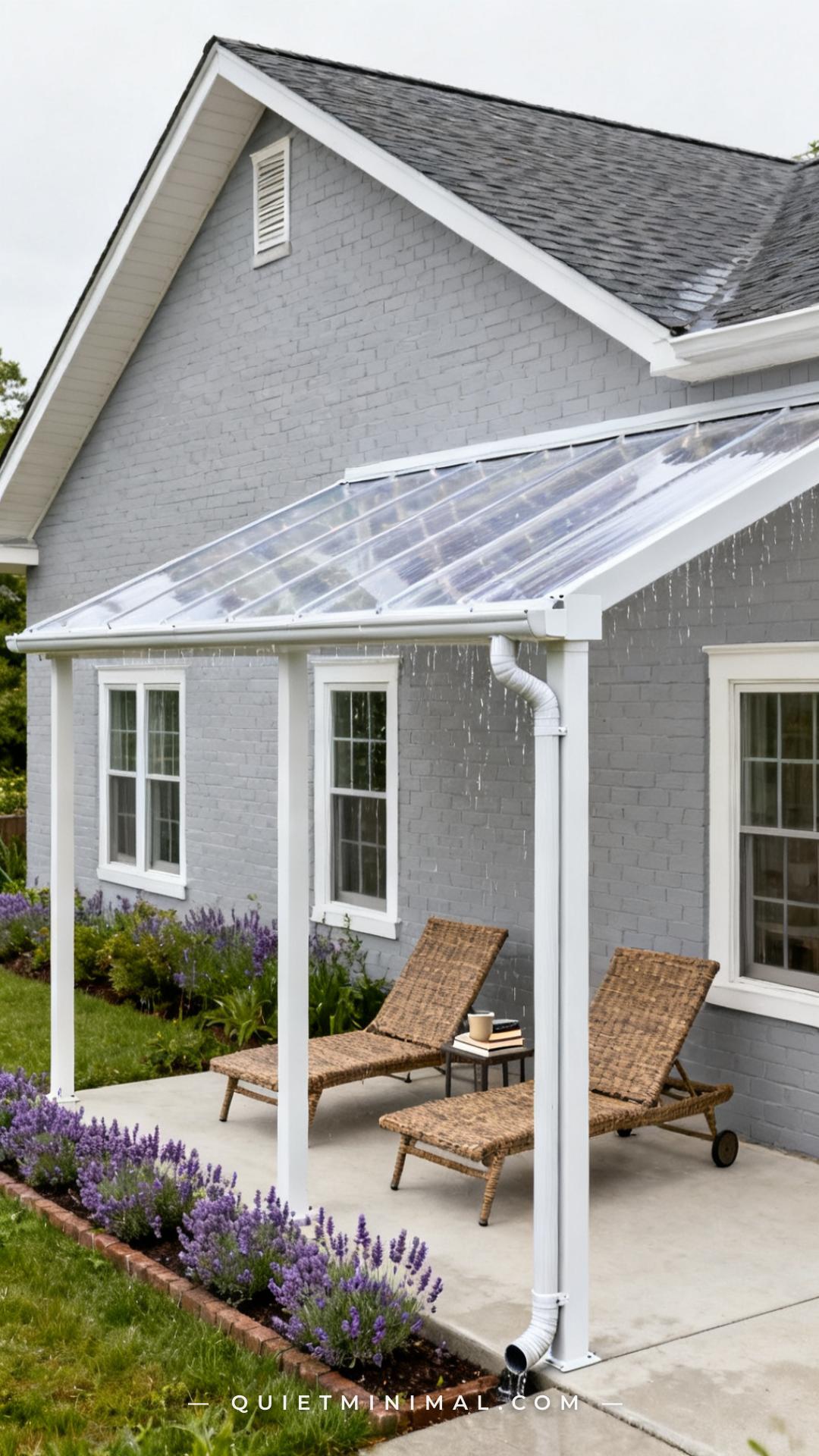

4. The Right Roof Pitch: Why 5 Degrees Is the Minimum You Should Accept
Nothing ruins a polycarbonate patio cover faster than insufficient pitch. Panels installed too flat — under 5 degrees from horizontal — will pool water in every low point, and standing water accelerates the algae and mineral deposit buildup that turns panels green and opaque over time. The minimum functional slope for polycarbonate roofing is 5 degrees (approximately a 1-in-12 rise), and most manufacturers recommend 10 degrees or more for optimal drainage.
This is the detail most first-time pergola builders get wrong because it requires thinking about the height differential between the attachment point at the house and the outer beam height before a single post is set. If you’re retrofitting an existing flat-topped pergola, you can shim the rafter ends to create slope — but planning it in from the start is far cleaner. For freestanding pergolas, design the cross-beams at a 10-degree pitch from the start and use a gutter along the low edge to control runoff.
Key Takeaway: Design for a minimum 10-degree roof pitch from the start — this single detail determines whether your cover sheds rain cleanly or turns into a leaking, algae-filled mess within two seasons.

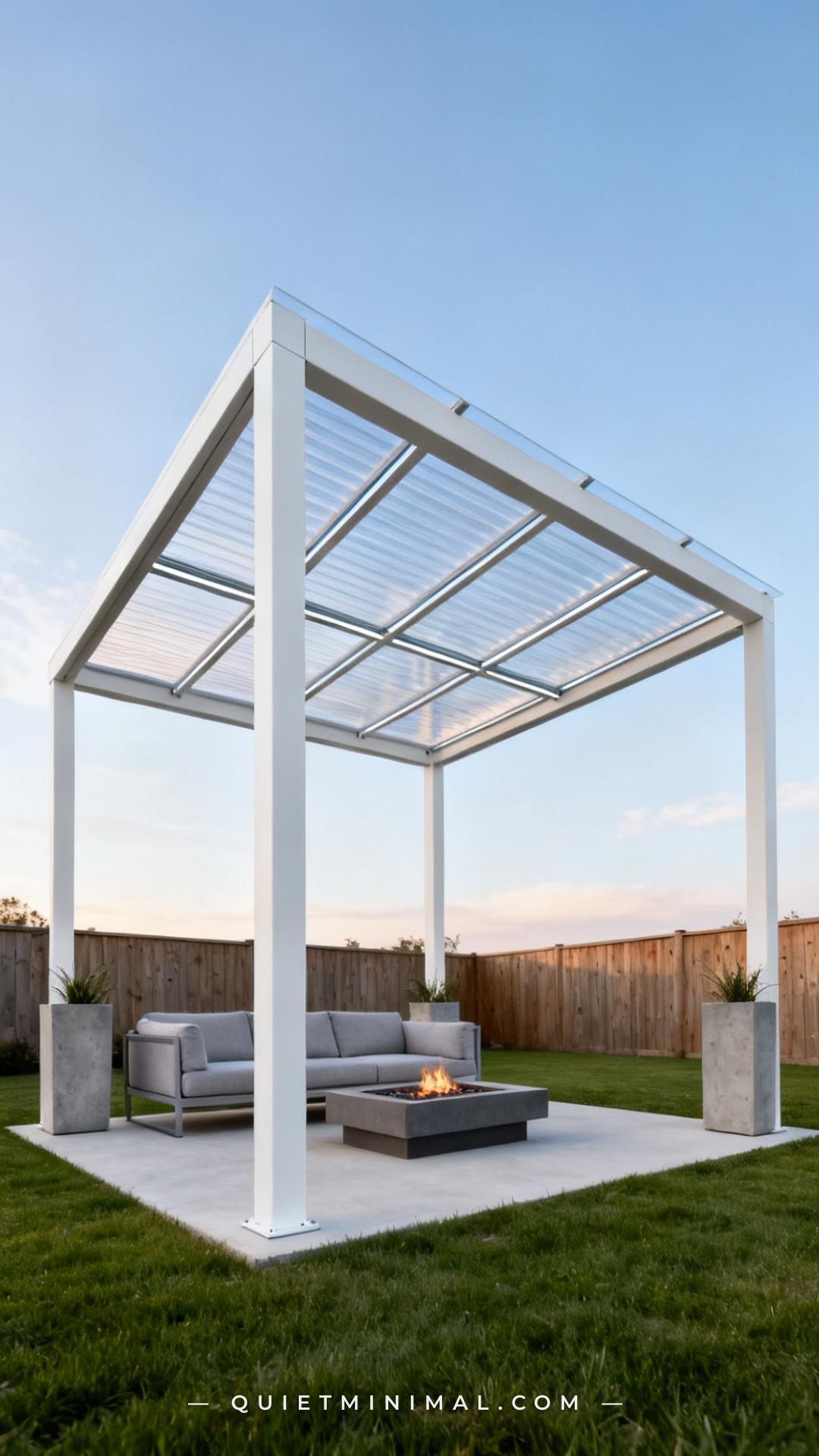

5. Aluminum Pergola Frames: The Best Pairing for Polycarbonate Panels
Timber frames are beautiful but require maintenance, and the constant expansion and contraction of wood in changing humidity can crack polycarbonate panels fastened rigidly to them. Aluminum pergola frames sidestep this problem entirely. Aluminum doesn’t rot, doesn’t warp seasonally, and — when the panels are seated in purpose-made aluminum glazing channel or H-profile connectors — allows the polycarbonate to expand and contract independently without stress cracking.
Powder-coated aluminum is widely available in white, matte black, grey, and bronze to match any panel tint choice. Brands like Palram, Canopia, and Palermo make full kit systems where the frame and polycarbonate panels are designed to work together, with pre-engineered anchor points and channel connectors that make installation significantly more foolproof than cutting and drilling panels to a custom timber frame.
Key Takeaway: Pair polycarbonate panels with an aluminum frame whenever possible — the dimensional stability of the metal eliminates the cracking risk that comes from wood’s seasonal movement under rigidly fastened panels.

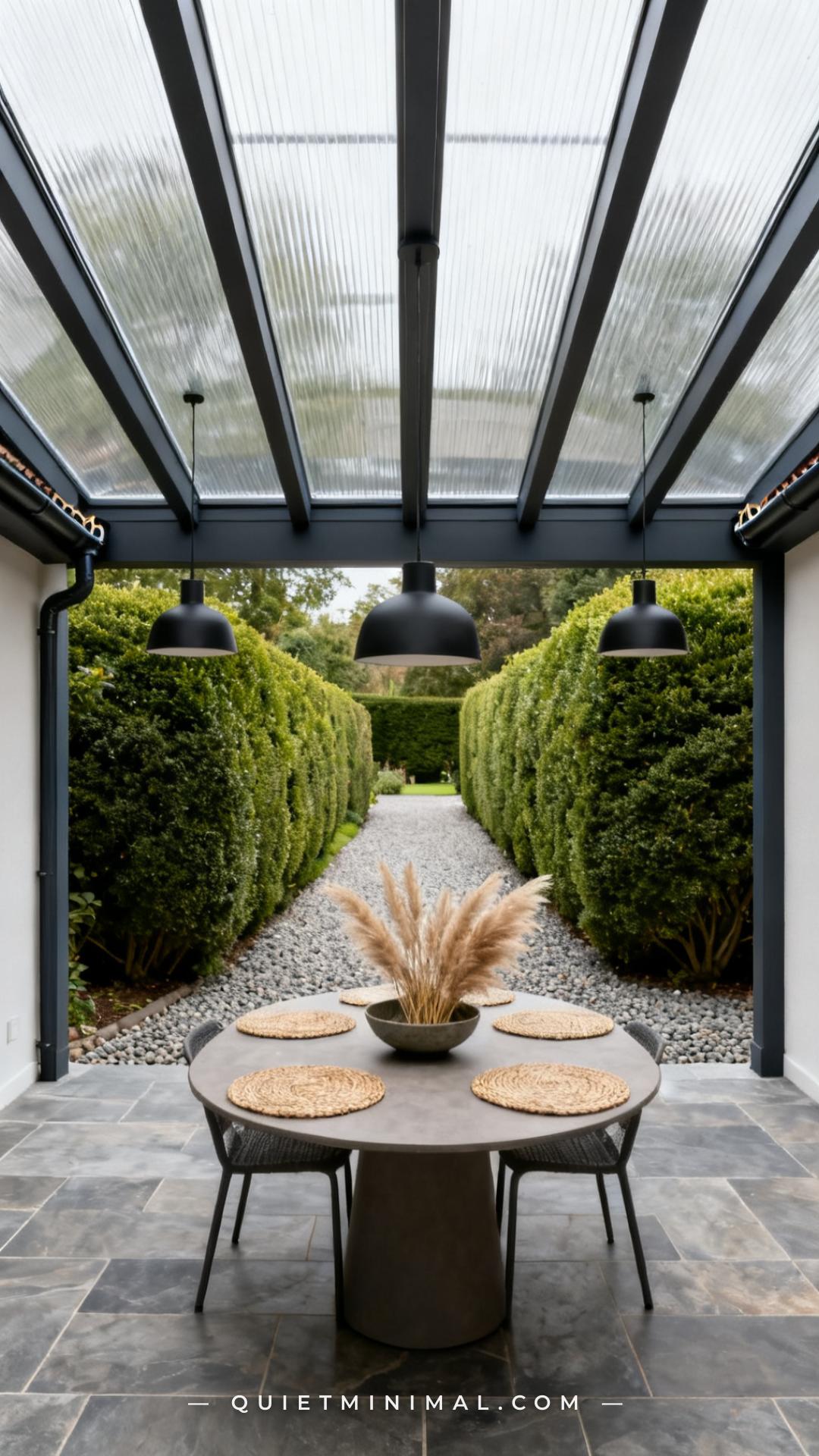

6. Multiwall Panel Thickness Guide: 4mm vs. 8mm vs. 16mm
Panel thickness is the single spec that most homeowners underresearch, and it determines both structural performance and thermal performance.
4mm twin-wall is the entry point — fine for mild climates with no snow and light wind, but it deflects noticeably under moderate loads and is not recommended for permanent patio covers intended to last more than five years.
8mm twin-wall is the sweet spot for most residential pergolas in moderate climates. It’s stiff enough to span 600mm rafter centers, handles typical wind loads, and is available from major brands with a 10-year warranty against yellowing.
16mm multiwall (or triple-wall) is for demanding climates — heavy snow regions, coastal areas with high wind, or any span wider than 700mm between rafters. The thermal insulation value is also meaningfully better, making it the choice for a four-season outdoor room rather than a simple rain cover.
Key Takeaway: Choose 8mm as your default for most pergola applications — only drop to 4mm for purely decorative or temporary covers, and step up to 16mm if you’re designing a true four-season space.

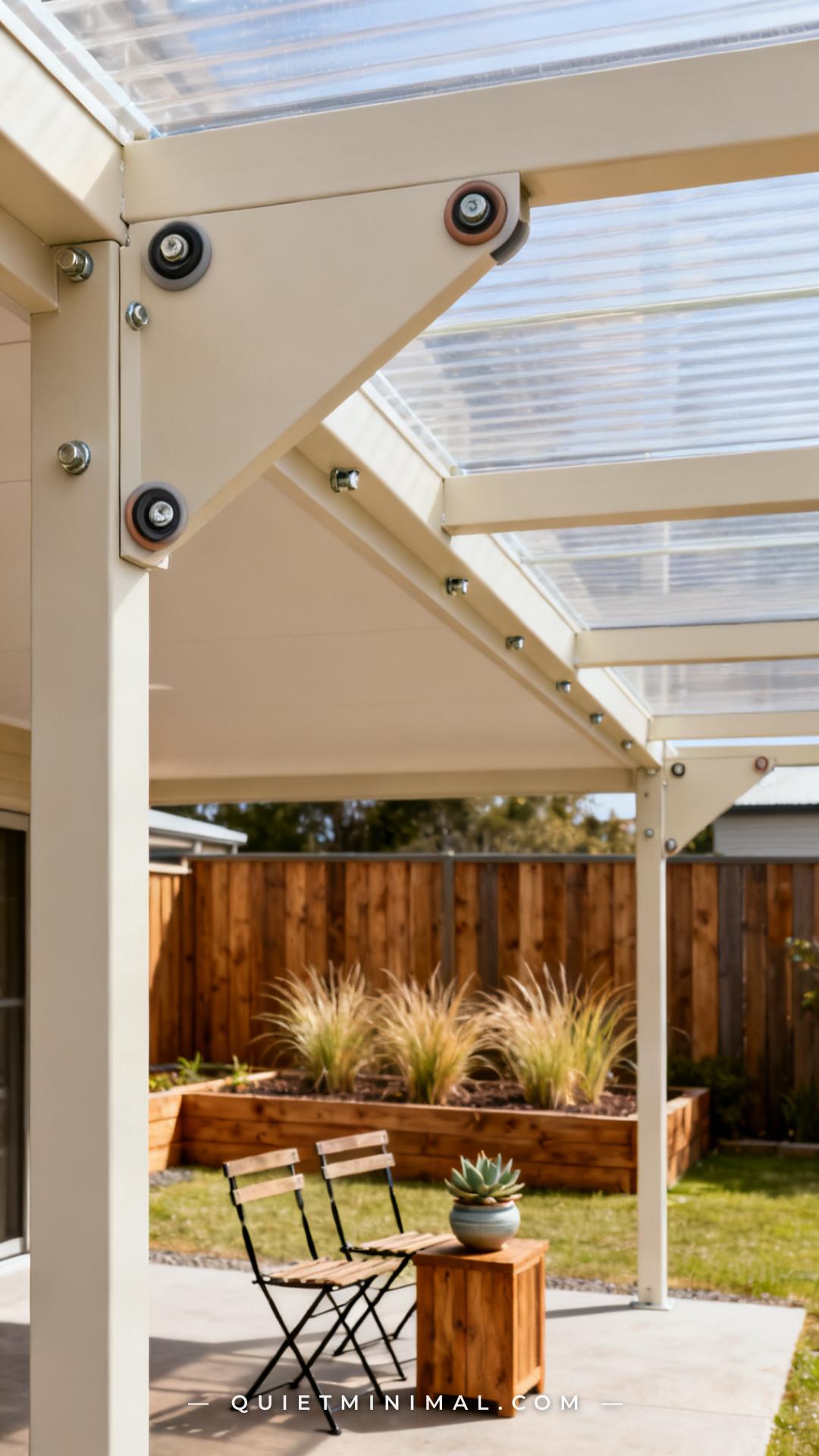

7. Pre-Drilled Fastening Systems That Prevent Cracking and Leaking
One of the most common installation errors with polycarbonate panels is over-tightening screws or drilling fastener holes the same diameter as the screw shank. Polycarbonate expands and contracts with temperature — by as much as 3mm per meter over a typical temperature swing — and if the fastener hole doesn’t allow lateral movement, the panel will crack at every fastening point within a few seasons.
The correct method: pre-drill fastener holes 3–5mm larger in diameter than the screw shank, use neoprene-backed polycarbonate screws (the rubber washer seals the hole and provides the cushion), and never fully torque the screw down — leave a hair of give so the panel can slide. Purpose-made polycarbonate roofing screw kits are available on Amazon and include the correct washer and shank sizing for each panel thickness.
Key Takeaway: Use pre-drilled oversized holes with neoprene-backed screws on every fastening point — this is the one installation detail that separates a polycarbonate roof that lasts from one that develops hairline cracks at every screw within three years.

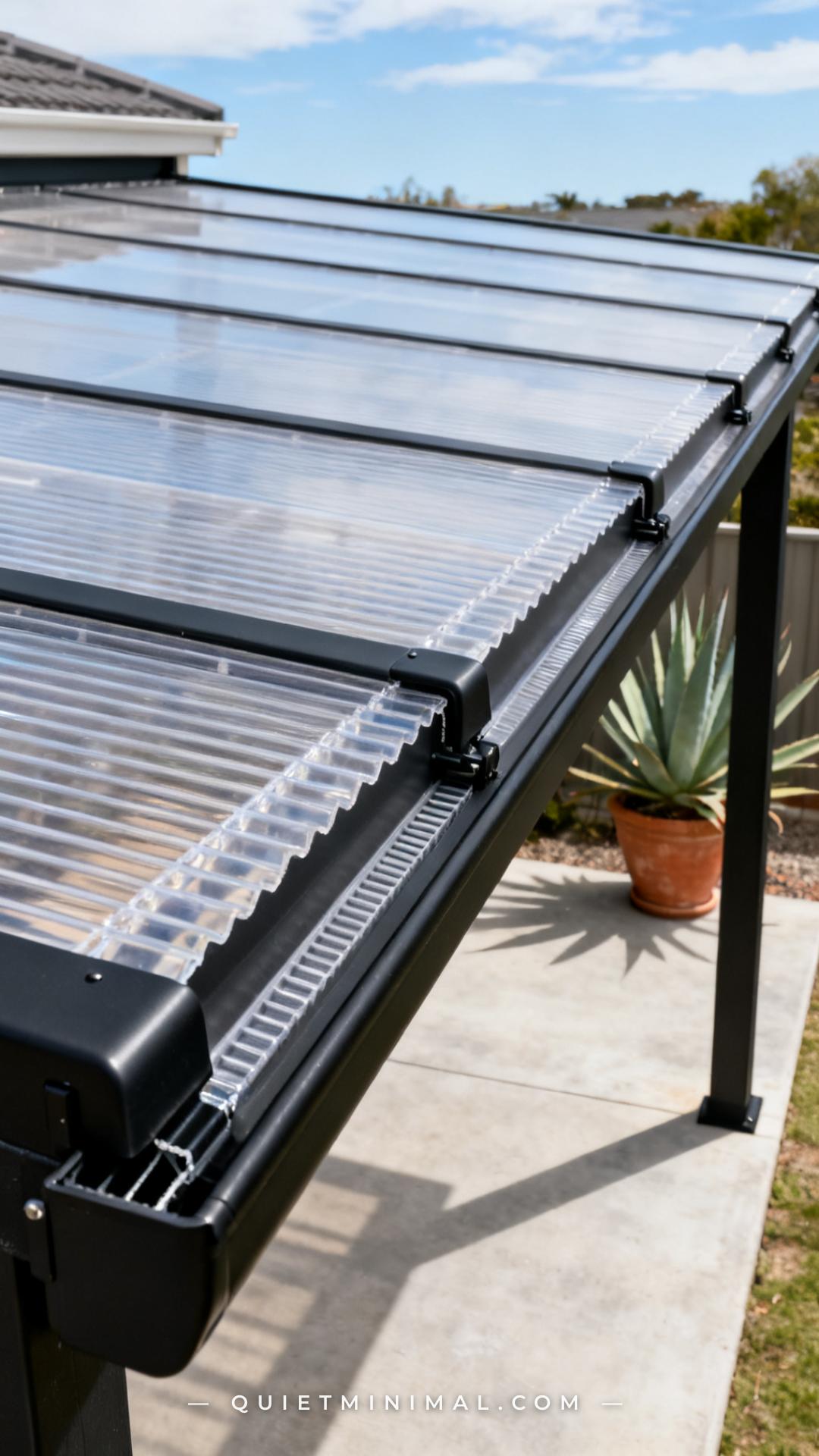

8. Sealing the Panel Ends: Tape, Caps, and Why Both Matter
The two open ends of every twin-wall or multiwall polycarbonate panel — the cut edges where the internal channels are exposed — are the primary entry points for moisture, insects, and dust. Over two to three seasons without protection, those channels accumulate debris and moisture that travels the full length of the panel, creating a permanent discoloration that’s visible from below and can’t be cleaned out.
The solution is two-part: first, apply polycarbonate panel tape (a microporous, self-adhesive aluminum or butyl tape) across the bottom edge of each panel to keep water from wicking into the channels while still allowing condensation vapor to escape. Then snap an aluminum end-cap profile over each taped edge for physical protection. The top edge — the high side of the pitched roof — gets a solid (fully sealed) tape only, since you want zero moisture entry at the high point.
Key Takeaway: Sealing both ends of every panel with the correct tape and end-cap profile is a 30-minute step per panel that prevents the most common long-term failure mode — interior channel contamination that turns panels opaque from the inside.

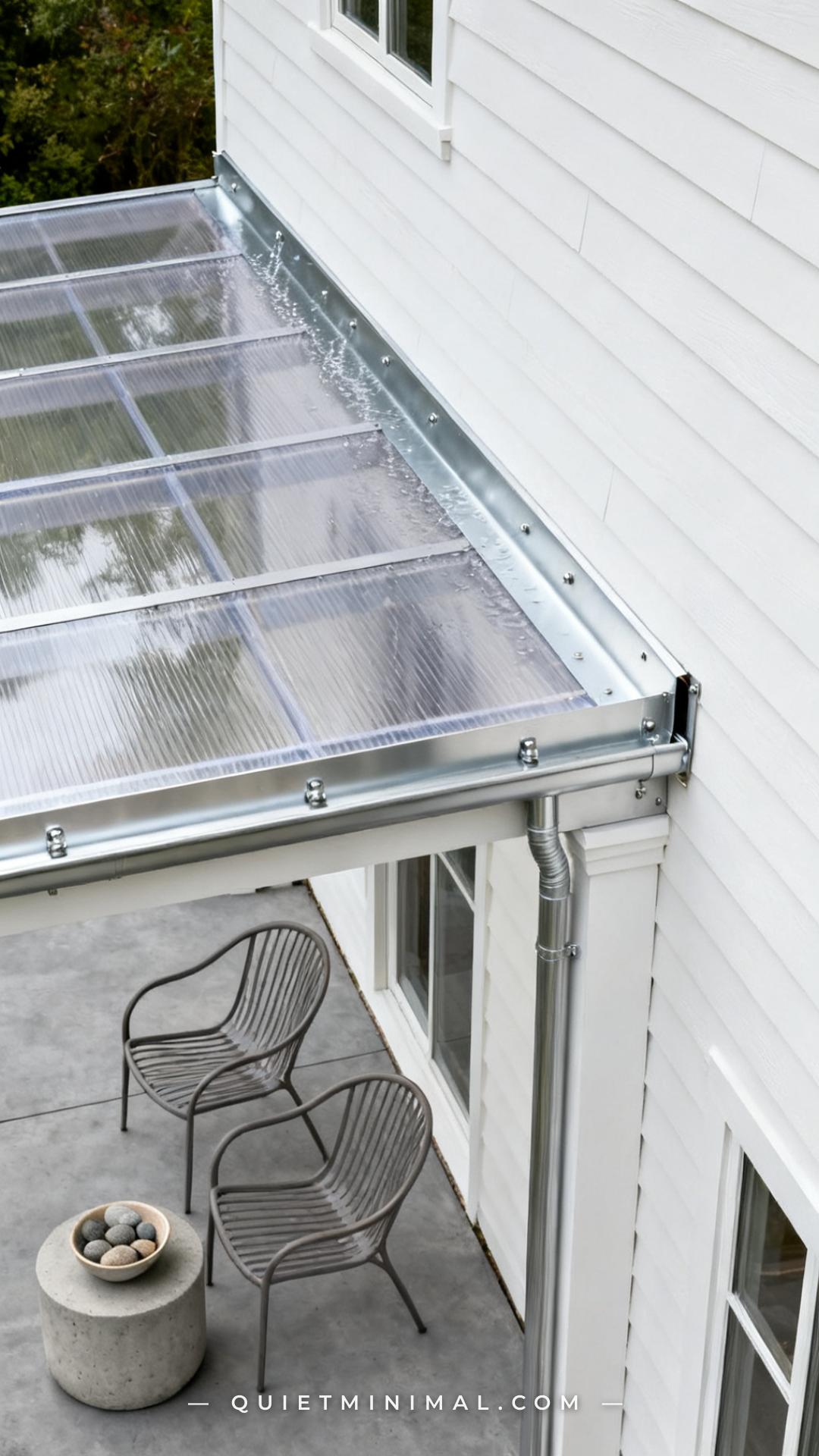

9. Attaching a Polycarbonate Pergola to the House: Ledger Board and Flashing
When a polycarbonate patio cover attaches to the house, the wall connection is the single most leak-prone point in the entire assembly. The issue is almost always flashing — or the absence of it. Without correctly installed step flashing above the panel-to-wall junction, water runs down the wall face, finds the gap between the panel and the ledger, and enters the interior of the wall cavity.
The correct installation sequence: attach a purpose-made aluminum ledger channel to the wall using lag screws into the house framing (not just the sheathing), seat the high panel ends into the channel, then install aluminum step flashing that laps up the wall above the channel and directs water over the top of the panel edge. Caulk the top edge of the flashing to the wall with a polyurethane exterior sealant — not silicone, which doesn’t adhere reliably to painted siding. This assembly should be inspected and re-caulked every two to three years.
Key Takeaway: Proper step flashing above the ledger channel — not just caulk — is the non-negotiable waterproofing detail at every house-attached polycarbonate roof, and skipping it is the single most common source of wall water damage on DIY patio covers.

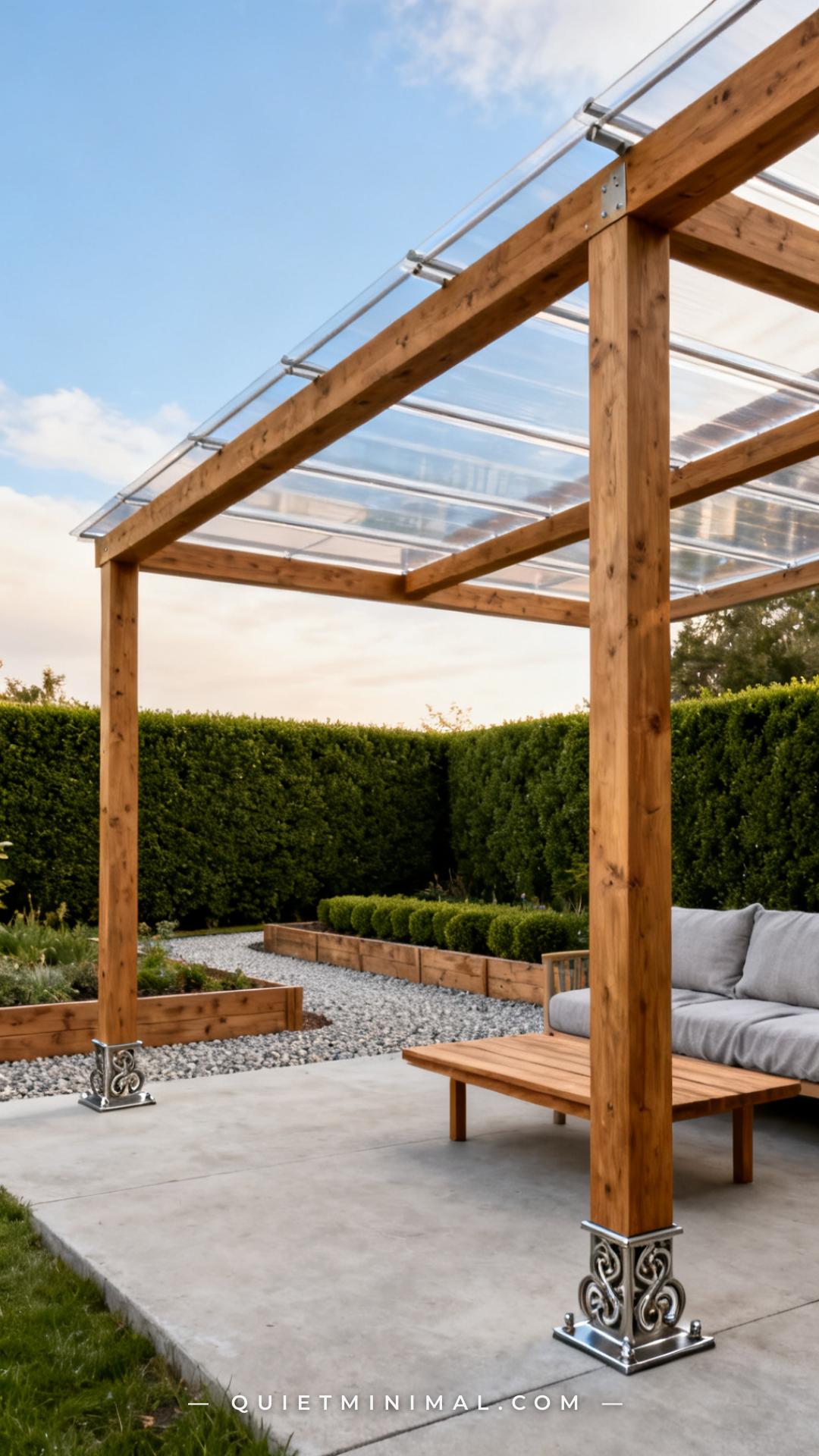

10. Freestanding Pergola With Polycarbonate Roof: Post Footing Sizing
A freestanding pergola carrying a polycarbonate roof is a fully self-supporting structure — wind uplift, panel weight, and in some climates, snow load all transfer down through the posts into the footings. Under-sized footings are the number-one structural failure point for DIY freestanding pergolas, and they’re also the primary reason building departments reject permits for patio covers.
As a practical baseline: for a pergola with 4 posts in a climate with no snow, pour concrete footings at least 12 inches in diameter and 24 inches deep — deeper if your frost line exceeds that. In climates with seasonal snow or high wind, consult your local building department for the required footing size based on the post spacing and tributary area. Post base anchors (Simpson Strong-Tie makes the most widely used residential line) connect the treated lumber posts to the concrete without embedding the wood directly in the ground, which dramatically extends post life by eliminating ground contact.
Key Takeaway: Always size footings to your local frost line depth and calculated load — guessing on footing depth is the structural shortcut most likely to result in a leaning or collapsing pergola within five years.

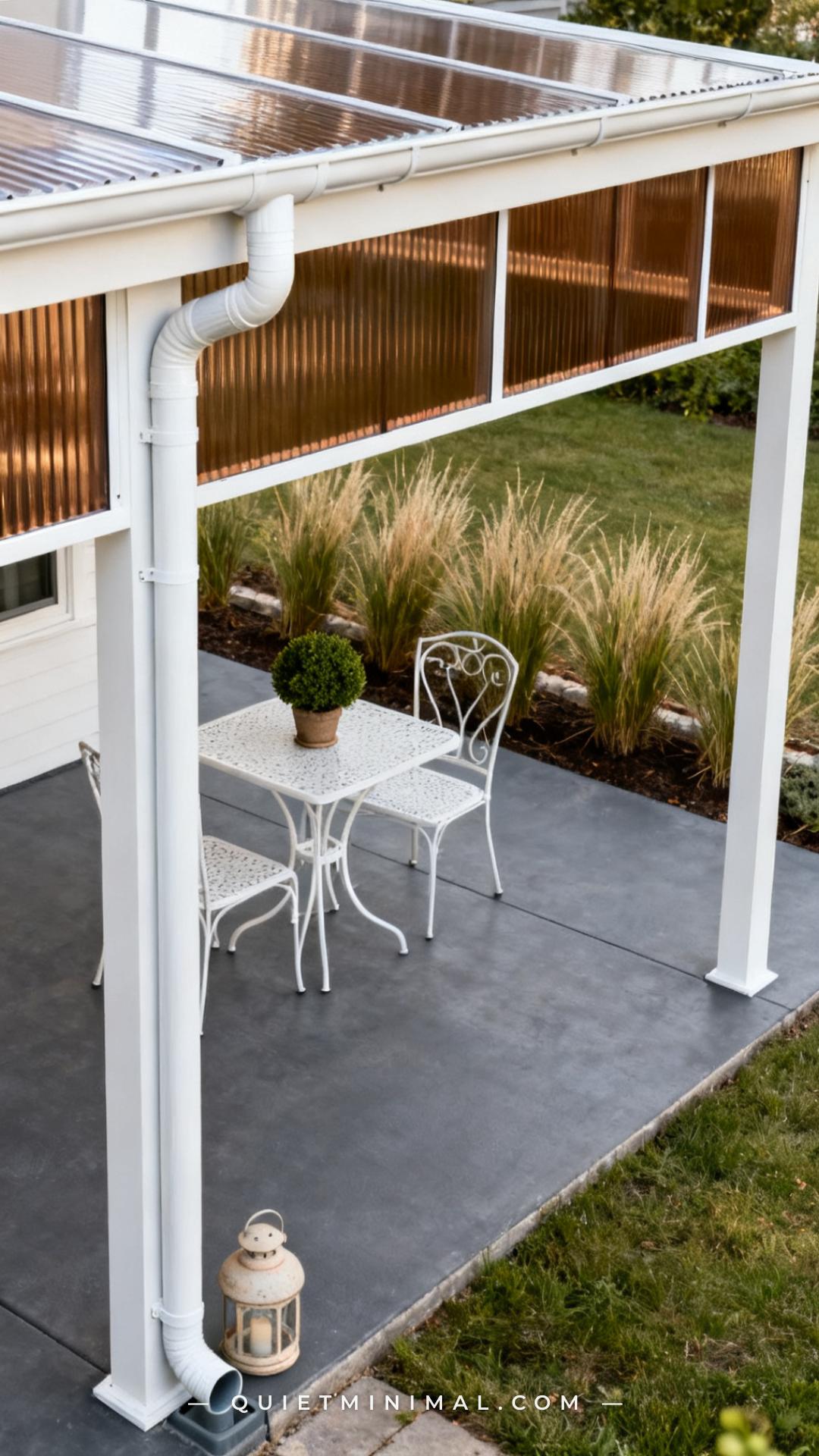

11. Gutter Integration: Controlling Runoff From a Polycarbonate Roof
Without a gutter, a polycarbonate patio cover simply dumps rainwater off its low edge in a concentrated sheet — which erodes any planting along the patio perimeter, keeps the patio surface wet for hours, and deposits dirty runoff exactly where people walk. A properly integrated gutter makes the cover genuinely functional in heavy rain rather than merely decorative.
For a residential pergola with spans up to 20 feet, a 5-inch K-style aluminum gutter is appropriately sized. The gutter attaches to the outer face of the low-side beam, pitched slightly (1/4 inch per 10 feet) toward the downspout. Downspout placement matters: route it away from the patio entry path and connect to a buried drain line or a splash block that directs water at least 6 feet from the structure’s base. Leaf guards are worth adding if the pergola sits under or near trees — pine needles and leaves clog the narrow polycarbonate panel channels above the gutter and cause the same debris problem at the gutter inlet.
Key Takeaway: Adding a gutter to the low edge of your polycarbonate roof converts it from a decorative shade structure to a genuinely functional all-weather cover — and it’s a one-afternoon add-on that costs very little relative to the performance difference.

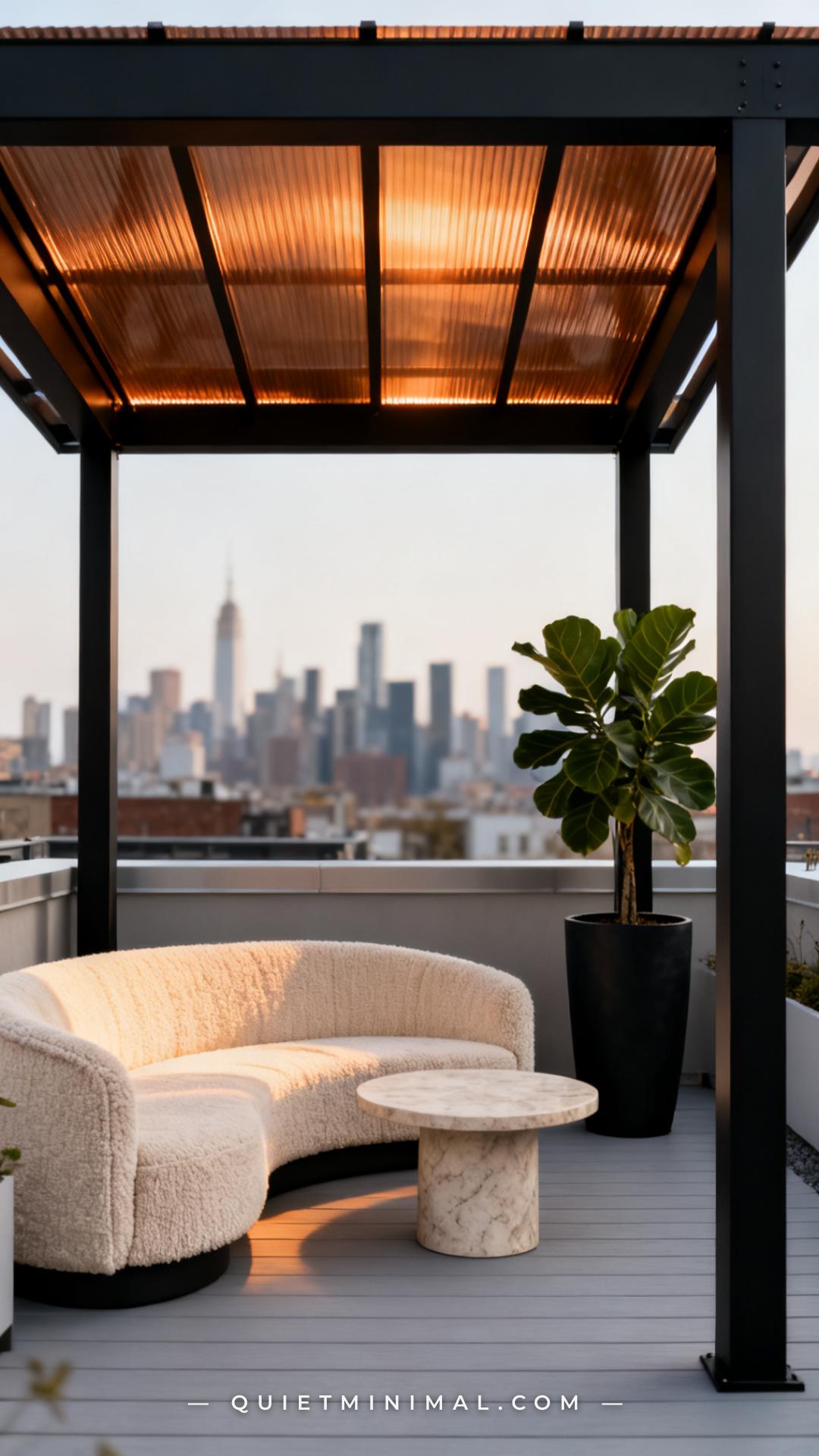

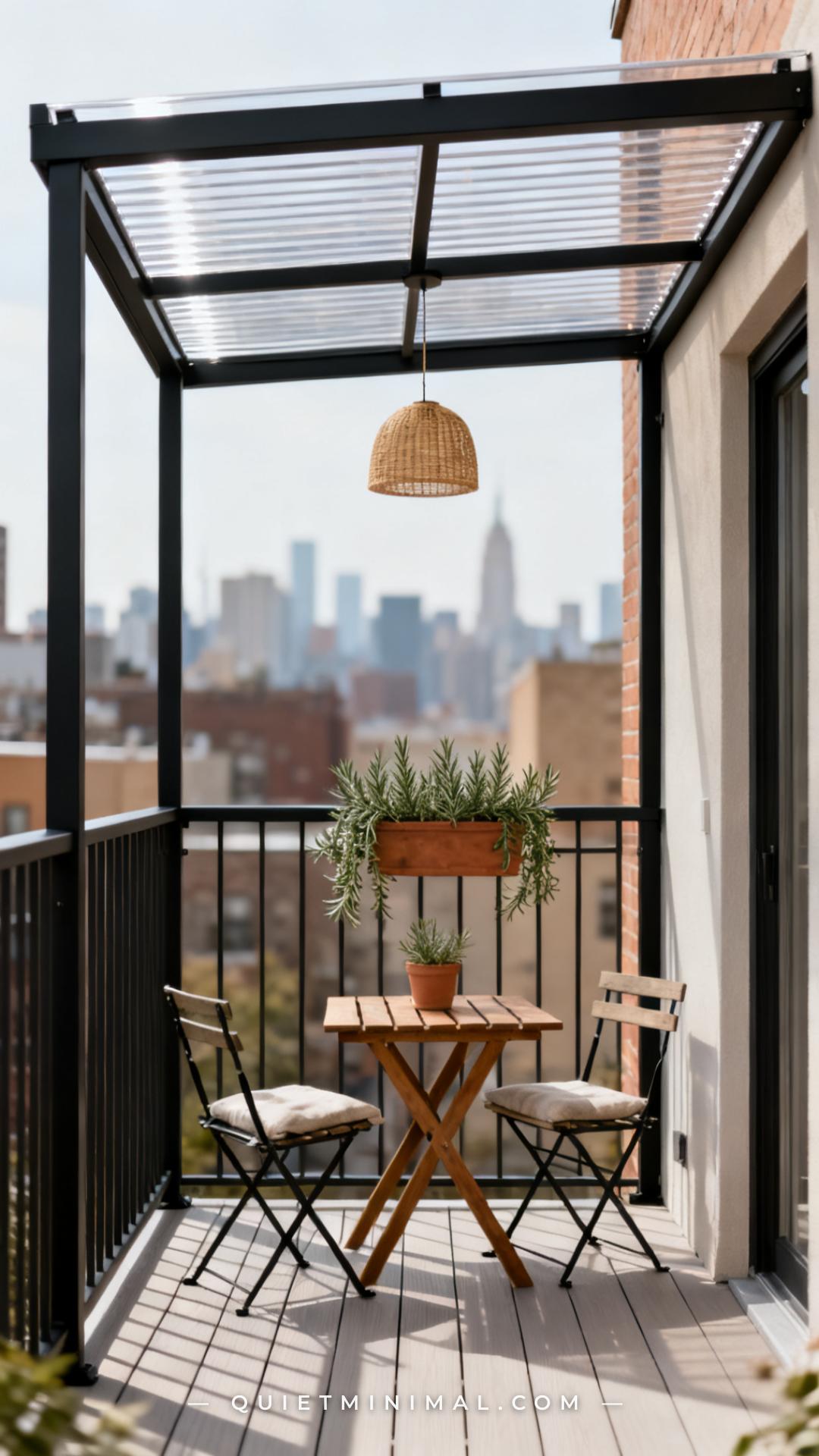

12. Polycarbonate Roof Pergola for a Small Balcony or Urban Terrace
Polycarbonate roofing is arguably even more valuable on a small urban balcony than on a large suburban patio, because balconies are often the only usable outdoor space in an apartment or townhome — and without overhead protection, a rain shower cancels the entire experience. A slim aluminum-framed pergola with polycarbonate panels can be designed to mount to the balcony railing or the building wall without penetrating the structural slab, using clamp-based post anchors approved for balcony use.
The key design constraint on a balcony is wind. Urban high-rise settings experience significantly higher wind uplift than ground-level patios, which means panel-to-frame fastening needs to be more frequent (every 300–400mm rather than the standard 600mm) and the frame itself needs to be anchored more securely. Clear panels are the default choice here because they maintain the open-sky feel that makes balconies pleasant — bronze or opal tint on a small urban balcony can make the space feel closed and dim.
Key Takeaway: For urban balconies, choose clear panels, increase fastening frequency for wind resistance, and use clamp-based anchors rated for balcony use — this configuration turns an unusable rainy-day balcony into a functional outdoor room in any season.
13. Cleaning and Maintaining Polycarbonate Panels for Long-Term Clarity
Polycarbonate panels don’t require much maintenance, but they require the right maintenance. Pressure washing — especially with a narrow-tip nozzle — will scratch the UV-protective coating permanently, turning clear panels into hazy ones. The only safe cleaning method is a soft cloth or sponge with mild soap and lukewarm water. Rinse thoroughly and allow to air dry. For moss or algae growth (common on shaded north-facing covers), use a diluted white vinegar solution — not bleach, which degrades the UV coating.
Every two years, inspect the end-cap seals and the caulk line at the wall flashing. UV exposure and thermal cycling will gradually degrade both, and re-sealing before moisture enters is far less work than dealing with the damage after. Check that each fastening screw is still snug but not over-torqued — a screw that has pulled through its oversized hole can be addressed by drilling a slightly larger hole one position over and re-fastening. Most well-installed polycarbonate roofs with proper maintenance carry a 10-year manufacturer warranty against yellowing — and many outlast it by years.
Key Takeaway: Clean annually with mild soap and a soft cloth only, re-seal end caps and flashing every two years, and inspect fasteners for over-torquing — this three-step routine is the entire maintenance schedule for a polycarbonate roof that stays clear and functional for a decade or more.
Make Your Patio Cover Decision With Confidence
The most important thing this research turns up, consistently, is that polycarbonate patio covers fail from detail errors — wrong pitch, missing end caps, rigid fastening, no flashing — not from the material itself. Get those details right and a polycarbonate pergola roof becomes one of the most durable, lowest-maintenance outdoor investments you can make. Start by confirming your roof pitch and your frame type, then select your panel thickness based on your climate’s snow and wind loads. Everything else — tint color, frame finish, gutter style — is the enjoyable part. Pick the combination that works for your space, do the installation details correctly once, and this is a cover you won’t be thinking about again for many years.
